urinals dimensions in mm

Related Questions?

Q1. What are the dimensions of a Urinals?

The dimensions of a urinals are Length: 343 mm (14 inches), Breadth: 368 mm (15 inches) and height (Urinal): 518 mm (21 inches). The height of a urinal from floor level should be between 450 to 610 mm (18 to 24 inches); it varies as per the user’s needs.

Q2. What is the standard installation height for the Urinals from floor level?

The standard urinal height from the floor level should be 610 mm (24 inches) for adults and 510 mm (20 inches) for juniors. On the market, there are several options for different urinal heights as per the user’s needs that are between 450 to 610 mm (18 to 24 inches).

Q3. Distance of the Urinals from the wall and other fixtures?

The distance of the urinals from the center to the wall should be 450 mm (18 inches). This much distance is also required from other fixtures like the wash basin, bathtub, shower area, etc.

Q4. How much activity area is required to use the urinals comfortably?

The activity area in front of the urinal should be 450 x 450 mm (18 x 18 inches). Then it will be comfortable to use for the users.

Q5. Where to place a urinal in a toilet or bathroom?

The preferred location of the urinal should be in a semi-wet area with non-slippery tiles; also consider the circulation and activity areas of different fixtures inside the toilet or bathroom. Doing so makes the design and arrangement perfect inside the toilet.

To read the detailed design and interior guide for the toilet or bathroom, click here

*Note: The dimensions written in inches and mm are individual dimensions, not converted.

Highlights

Dimensions:

Length  :- 343 mm

Breadth :- 368 mm

Height (Urinal) :- 518 mm

Height (Urinate) :- 610 mm (Adults) and 510 mm (Juniors)

Materials:

Vitreous China, Porcelain, Plastic, Stainless Steel, etc.

Download:

Free 2D AutoCAD File

Related Post

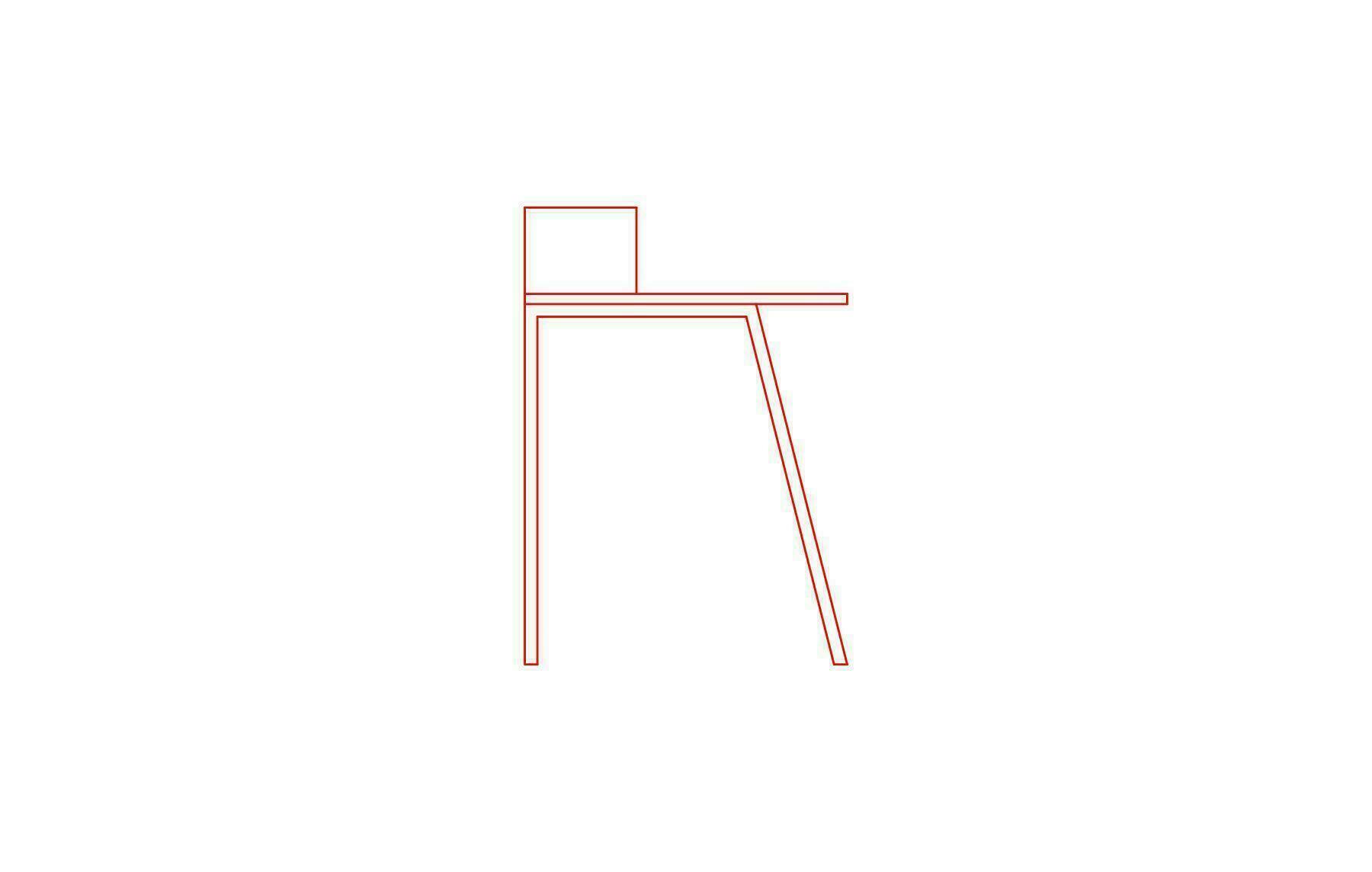

Study Table
