commode dwg download

Related Questions?

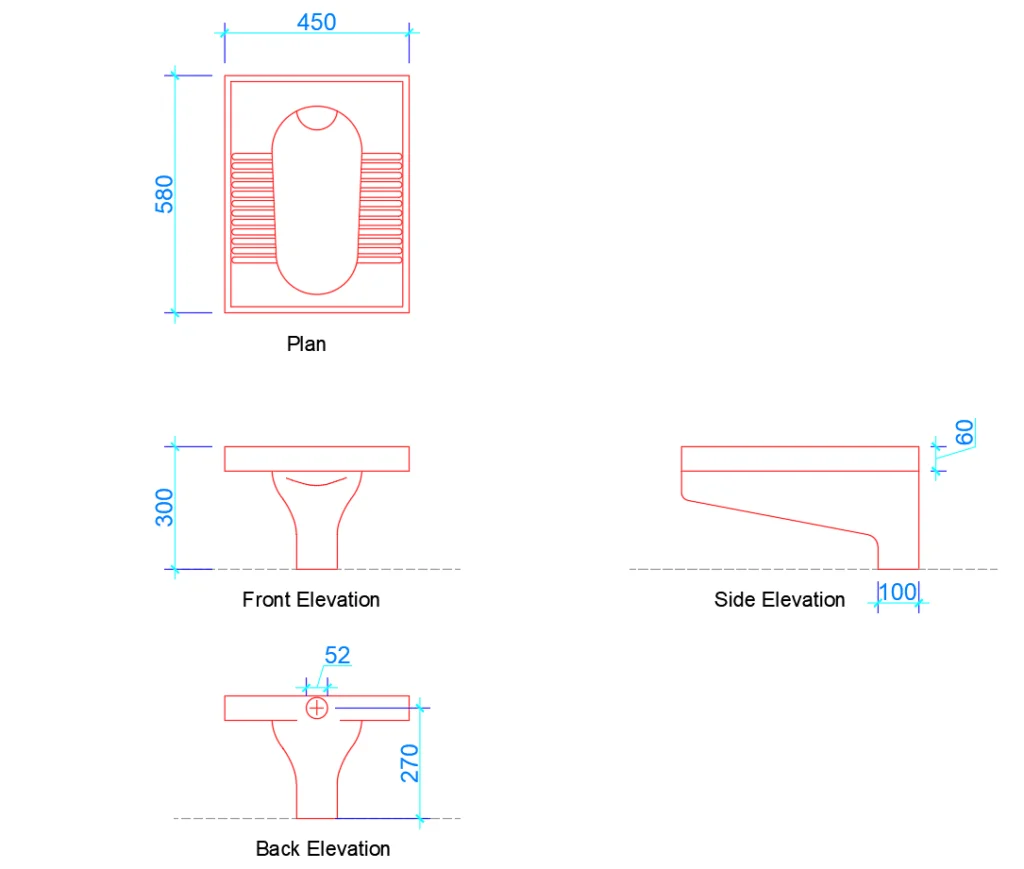

Q1. What are the dimensions of a Commode?

The dimensions of a Commode are Length: 450 mm (18 inches), Breadth: 580 mm (23 inches) and Height: 300 mm (12 inches).

Q2. Preferred location of Indian commode inside toilet.

An Indian commode should be installed at the corner of the toilet or bathroom because in the front it will not look good and can disturb circulation inside the bathroom. As it requires some height from floor finish level.

Q3. What should be the height of Indian Commode from floor finish level?

Indian commode should be installed 200 to 250 mm (8 to 10 inches) from the floor finish level. The height can vary with respect to the height of commode you are installing.

Q4. How do we install Indian Commode?

  1. First of all, remove all unwanted things like stone, cement, brick, etc. from the floor level and clean the area.
  2. Create a desired floor level for the commode with the help of bricks.
  3. Align the trap of the commode above the drainage pipe and also connect a vent pipe with it. Level the surface of the commode with a level meter to ensure the installation is settled properly.
  4. Put the concreted cement in the trap of the commode; it will provide tensile strength to the commode.
  5. First of all, remove all unwanted things like stone, cement, brick, etc. from the floor level and clean the area.
  6. After that, fix the trap and pipe with the concreted cement.
  7. Check the level again and fill the platform with the required materials.
  8. This type of commode is available with a cistern tank, or we can use a water tap (manually).

Q5. What are the benefits of Indian commode over western seats?

Indian commodes offer many benefits over western seats, like:

  • It is easy to use.
  • More hygience.
  • Improves digestion by pushing and pressurizing the food in your stomach.
  • Offers good stool clearance.

To read the detailed design and interior guide for the toilet or bathroom, click here…

*Note: The dimensions written in inches and mm are individual dimensions, not converted.

Highlights

Dimensions:

Length  :- 450 mm

Breadth :- 580 mm

Height :- 300 mm

Weight:

17.6 Kg.

Brand:

Kemjo

Download:

FREE 2D AutoCAD File

Related Post

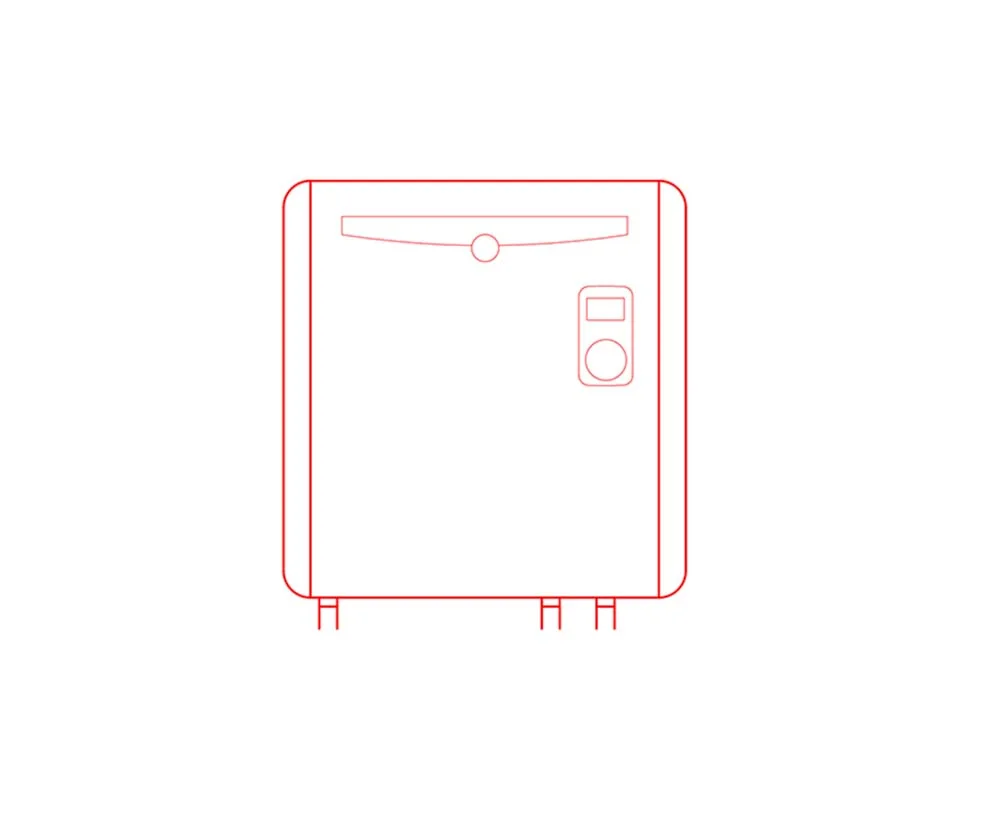

Electric Water Heater (6.6 GPM)
